The text question type collects a free-text string. It is the most flexible input type and supports a large number of appearance variants that change how the input is rendered — from a simple single-line field to speech-to-text, popup dialogs, rich text editors, and numeric spinners.

Basic XLSForm Specification

For the standard specification see the XLSForm documentation (opens in a new tab).

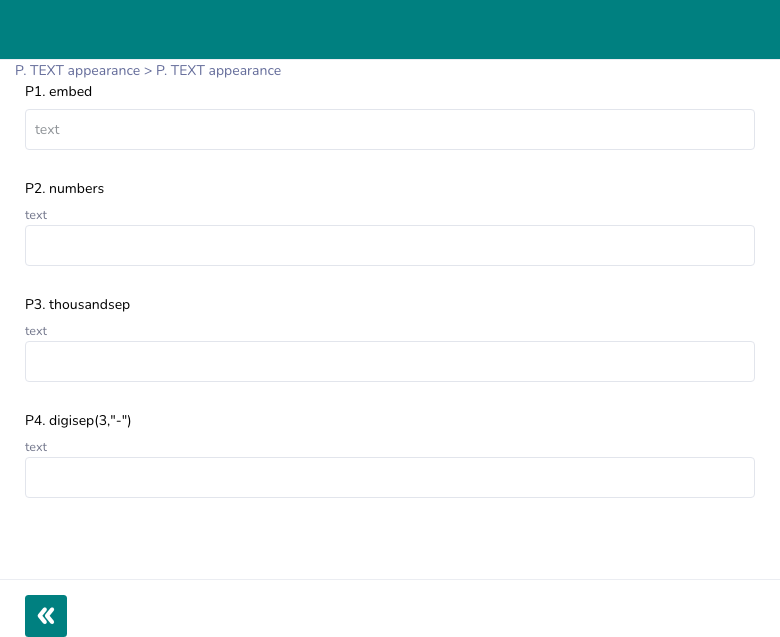

Layout modes

Default — single-line input

No appearance needed. Renders a standard <input type="text"> field.

multiline — textarea

Renders a multi-line textarea. The user can expand it by typing; it auto-grows.

multiline

Control row height by appending [initRows, maxRows]:

multiline [3,8]     → starts at 3 rows, expands up to 8
multiline [5]       → fixed at 5 rows

Default is 1 row with no max. Shift+Enter inserts a line break; Enter advances to the next question.

floating_hint — hint floats as label

The hint text renders inside the input field as a placeholder. When the user starts typing, the hint floats up above the field as a label.

floating_hint

embed — hint inside the input

Similar to floating_hint — the hint renders inside the input boundary when the field is empty. Does not float when typing.

embed

textpopup — modal dialog input

Tapping the field opens a SweetAlert modal dialog with a large input instead of editing inline. Useful on mobile to give more screen space for typing.

textpopup

richtext — WYSIWYG editor

Renders a full rich-text editor (Monaco / Draft.js). The respondent can bold, italicize, add lists, etc. The stored value is HTML.

richtext
richtext(30%)       → editor height 30% of viewport

charcount — live character counter

Adds a (n) character count display below the input, updating as the user types.

charcount
multiline charcount

Numeric input variants

These appearances work on text type to collect numbers with special formatting or interaction patterns.

numbers — numeric keyboard

Forces the HTML input type to number, triggering a numeric keyboard on mobile.

numbers

thousandsep — thousands separator

Displays the number with comma grouping (e.g. 1,234,567) while storing the raw number. Input type is forced to text to allow the comma display.

thousandsep

digisep(n, "sep") — custom digit grouping

Groups digits into blocks of n separated by a custom character. Useful for phone numbers, ID numbers, etc.

digisep(4,"-")      → 0912-3456-789
digisep(3," ")      → 012 345 678

number-hspinner — horizontal spinner

Replaces the input with a horizontal − value + spinner. The user taps the minus/plus buttons to decrement or increment the value. Works with int and decimal types.

number-hspinner

Customize button appearance using hspinner():

number-hspinner hspinner('left-small-square','right-small-square','1')

Parameters: left button shape, right button shape, step value.

Custom colors using colors():

number-hspinner colors(0099FF,FFFFFF,FF5500,FFFFFF)

Four color values: left-bg, left-icon, right-bg, right-icon.

prefix(expr) — prepend a prefix

Prepends a calculated or static string to the displayed value. The stored value does not include the prefix.

prefix('USD ')      → displays "USD 100", stores "100"
prefix(${currency}) → dynamic prefix from another field

textonly — force text input type

Forces type="text" even when the field is integer or decimal. Useful to avoid browser number-input quirks.

textonly

Text transformation

These appearances auto-transform the value as the user types.

Input capture helpers

inputs{stt} — speech to text

Adds a microphone button next to the input. Tapping it starts browser speech recognition (Web Speech API). The transcribed text is appended to the field.

inputs{stt}

Not supported on Safari. Requires microphone permission.

inputs{qrscan} — QR / barcode scanner

Adds a QR code scan button next to the input. Opens the camera scanner modal and populates the field with the scanned value.

inputs{qrscan}

Tokenize (append scanned values instead of replacing):

inputs{qrscan} append(${separator})

inputs{stt,qrscan} — both speech and scan

Renders both the microphone and QR scan buttons side by side.

inputs{stt,qrscan}
inputs{qrscan,stt}

Selection-linked variants

These appearances link a text field to a select_one choice list, letting the user either pick from the list or type freely.

selection_one_hide — dropdown picker

Renders the text input with a dropdown arrow. Tapping the arrow shows choices from the linked search() list. Selecting a choice fills the input and locks it (shows ✕ to clear).

selection_one_hide

selection_one_show — radio list below

Renders the text input with radio buttons below it. Selecting a radio fills and locks the input.

selection_one_show

Both variants require a search() expression in the calculation column to define the choice list.

Answer alignment

Controls horizontal alignment of the typed text within the input.

align_answer = left
align_answer = right
align_answer = center

Time input widget (inline clock)

rtSurvey extends text with a clock picker widget. These appearances display a clock icon the enumerator taps to select a time value. The value is stored as plain text in the chosen format.

Appearances

Format tokens

Append -[format] to control which time components are shown and stored:

Button position with display{}

Same as other inline types — controls position and size of the clock button:

inline display{right}
inline display{center, large}
inline-onlyresult display{left, medium, #0099FF}

Appearance quick reference

Constraints and validation

Apply constraints to enforce format, length, or pattern:

Best Practices

1. Use more specific types (integer, decimal, date) when the data has a known structure — this prevents invalid entries.
2. Use multiline [3,8] for open-ended questions to give respondents room to write without overwhelming the screen.
3. Use thousandsep or digisep() instead of numbers when you need formatted display — numbers alone only changes the keyboard.
4. Use inputs{qrscan} to eliminate manual typing errors for codes, IDs, and serial numbers.
5. Use floating_hint when the hint is important context that should remain visible while typing — standard hints disappear from view on small screens.
6. Use charcount on questions with length constraints so respondents can self-monitor.

Limitations

• inputs{stt} requires a browser that supports the Web Speech API. Chrome is the most reliable; Safari is not supported.
• richtext stores HTML — plan for HTML stripping or sanitization in your analysis pipeline if plain text is expected.
• selection_one_hide and selection_one_show require a search() expression and are only supported on the web client.
• number-hspinner validates against the constraint column on each button press, not just on blur — design constraints accordingly.
